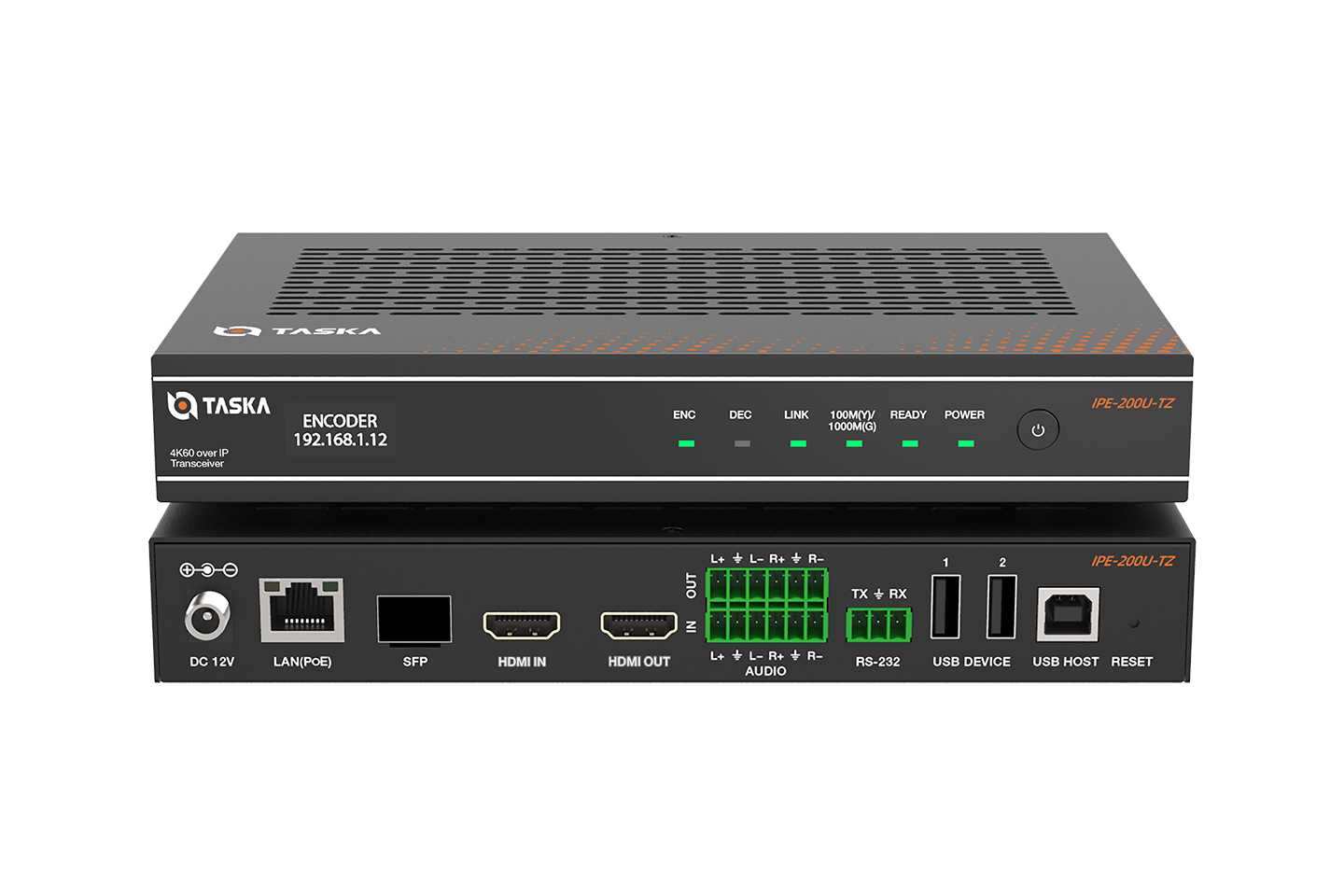

IPE-200Uv2-TZ

IP Extender 200 Series UHD Transceiver with Optional Dante

Taska IPE-200Uv2-TZ is a new generation of professional 4K60 H.264/H.265 all-in-one codec transceiver, offering optional Dante audio capability. Utilizing NeuroMesh Codec technology, it delivers uncompromised video quality with pixel-perfect color accuracy, making it ideal for color-critical applications. Designed for reliability in mission-critical environments, it features dual-network redundancy with auto-switching between Gigabit Ethernet and SFP ports (prioritizing Ethernet) to ensure uninterrupted ultra-lowlatency AV transmission over standard 1G networks at distances up to 100 meters.

This versatile unit integrates both encoder and decoder functions, providing flexible installation and setup options. It supports HDMI 2.0 I/O with 4:4:4 chroma processing, along with analog audio embedding/de-embedding for flexible audio routing. Beyond core encoding/decoding, the IPE-200Uv2-TZ enables advanced video wall processing, multi-view display configurations, and KVM workstation management, making it a comprehensive solution for high-performance AV installations where precision, reliability, and low latency are essential.

  • PRODUCT FEATURES
  • SPECIFICATION
  • DOWNLOADS
  • HDCP 2.2 compliant
  • Support video resolution up to 4K60Hz (4:4:4), 18Gbps video bandwidth, as specified in HDMI 2.0b
  • Support LPCM 2.0CH 48kHz audio format
  • Integrated encoder and decoder design, compatible with both fiber and copper connections
  • NeuroMesh Codec -Proprietary intelligent compression technology
  • Optinal for 2x2 Dante Audio. Can be enabled Dante audio capability as IPE-200UD-TZ
  • Window roaming function: a single decoder unit can process up to 16 signals, supporting arbitrary windowing, roaming, overlaying, and splicing
  • KVM seat management (one-to-one & one-to-many), enabling one user to operate multiple PCs
  • Universal H.264/H.265 protocol support, supporting IPC access and seamless integration with security camera products
  • Supports high-definition background images (both video and static images) and multi-screen splicing display
  • Support scrolling subtitles and character overlay
  • Support point-to-point signal extension
  • Support signal distribution, multicast mode, matrix and video wall functions over a 1G Network Switch
  • Support user rights management
  • Flexible control via KVM, APP and Control Server (IPE-300C)
  • Standard POE supported (IEEE802.3at )
  • Encoder supports HDMI local loop out
  • Encoder supports audio embedding and de-embedding function


Datasheet

  • IPE-200Uv2-TZ_Datasheet
