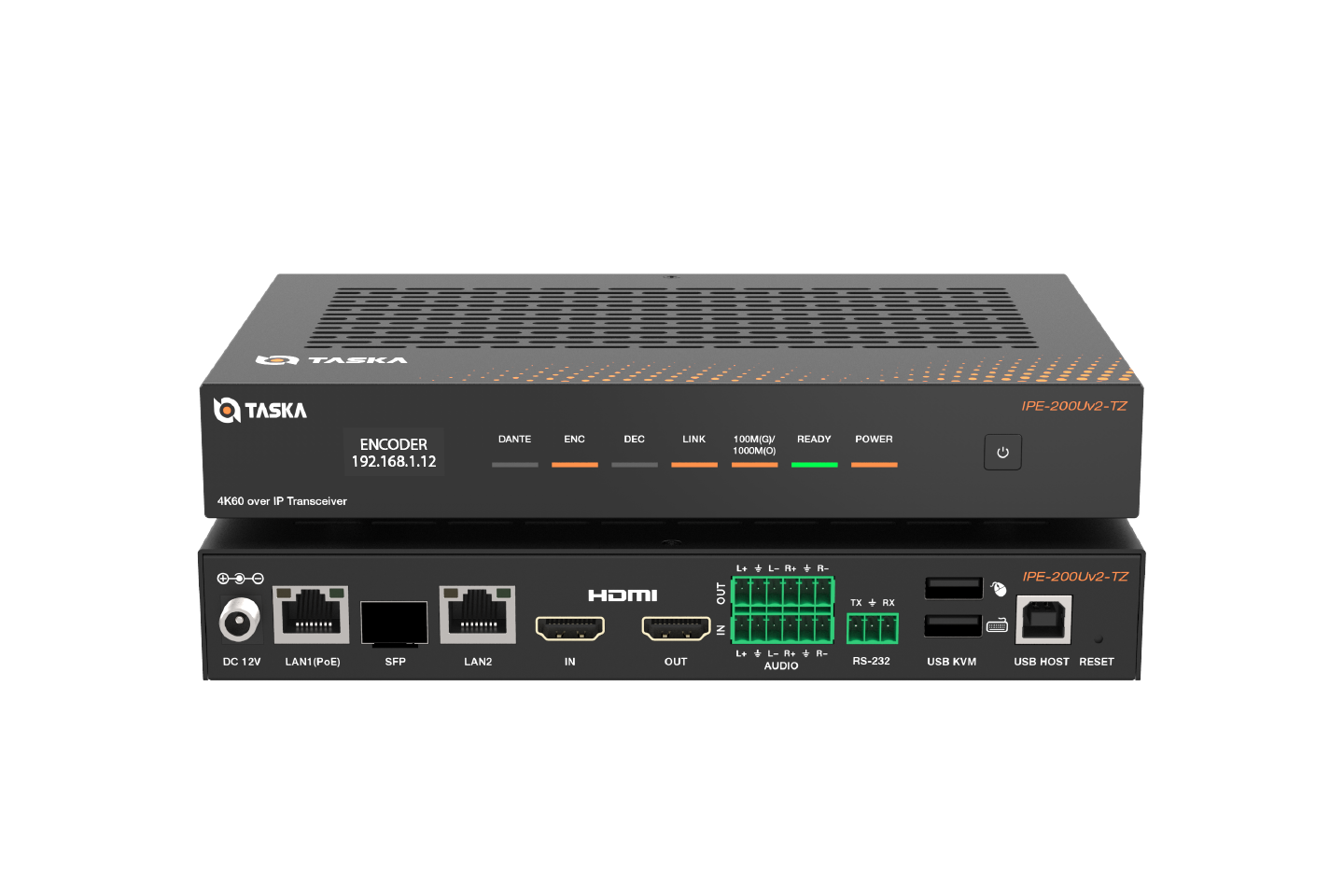

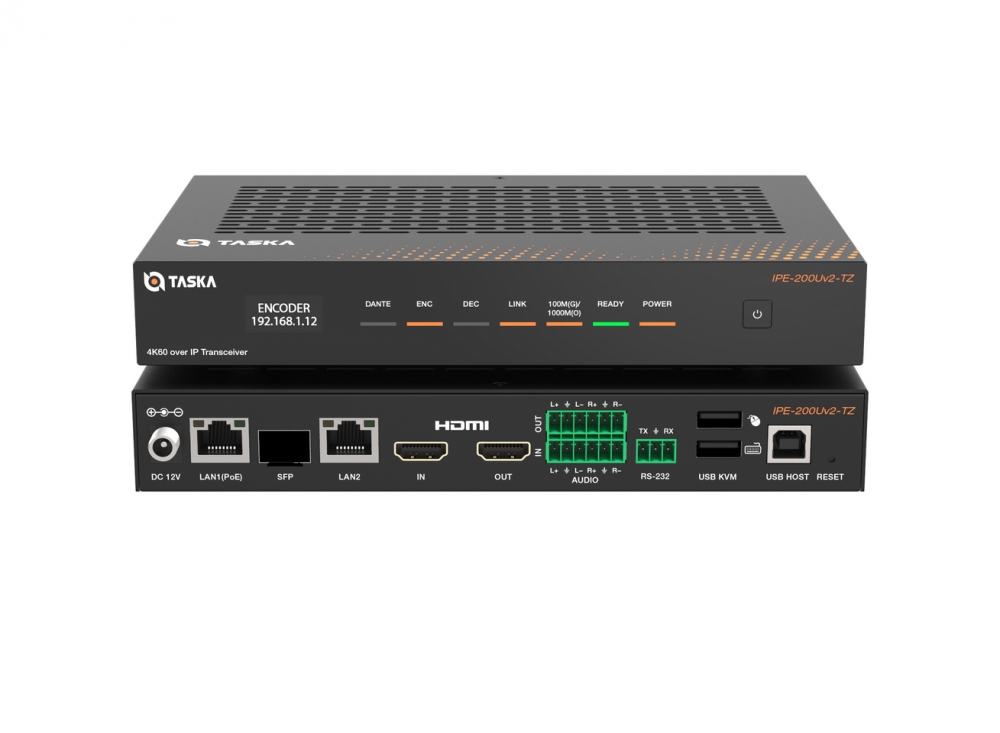

Taska IPE-200U is a professional-grade 4K60 H.264/H.265 all-in-one codec transceiver. It can deliver uncompromised video quality with true 4:4:4 chroma sampling, making it ideal for applications demanding pixel-perfect color accuracy. Designed for reliability in mission-critical environments, it features dual-network redundancy with auto-switching between Gigabit Ethernet and SFP ports (prioritizing Ethernet) to ensure uninterrupted ultra-low-latency AV transmission over standard 1G networks at distances up to 100 meters.
This versatile unit integrates both encoder and decoder functions. It is flexible for user to install and setup as what they need. Also, it supports HDMI 2.0 I/O with 4:4:4 processing, along with analog audio embedding/de-embedding for flexible audio routing. Beside core encoding/decoding, the IPE-200U enables advanced video wall processing, multi-view display configurations, and KVM workstation management, making it a comprehensive solution for high-performance AV installations where precision, reliability, and low latency are non-negotiable.
PRODUCT FEATURES
SPECIFICATION
DOWNLOADS
HDCP 2.2 compliant
Support video resolution up to 4K60Hz (4:4:4), 18Gbps video bandwidth, as specified in HDMI 2.0b
Audio formats support LPCM 2.0CH 48kHz
Integrated design of encoder and decoder, supporting fiber and copper
Support window roaming function: a unit as decoder can process up to 16 signals, enabling arbitrary windowing, roaming, overlaying, and splicing
KVM seat management (one-to-one & one-to-many), supporting one person manages multiple PCs
Universal H.264/265 protocol, supporting IPC access and seamless integration with security camera products
Support high definition background image (both video and picture are available), as well as multi-screen splicing display
Support scrolling subtitles and character overlay
Support point-to-point signal extension
Support signal distribution, multicast mode, matrix and video wall functions over a 1G Network Switch
Support user rights management

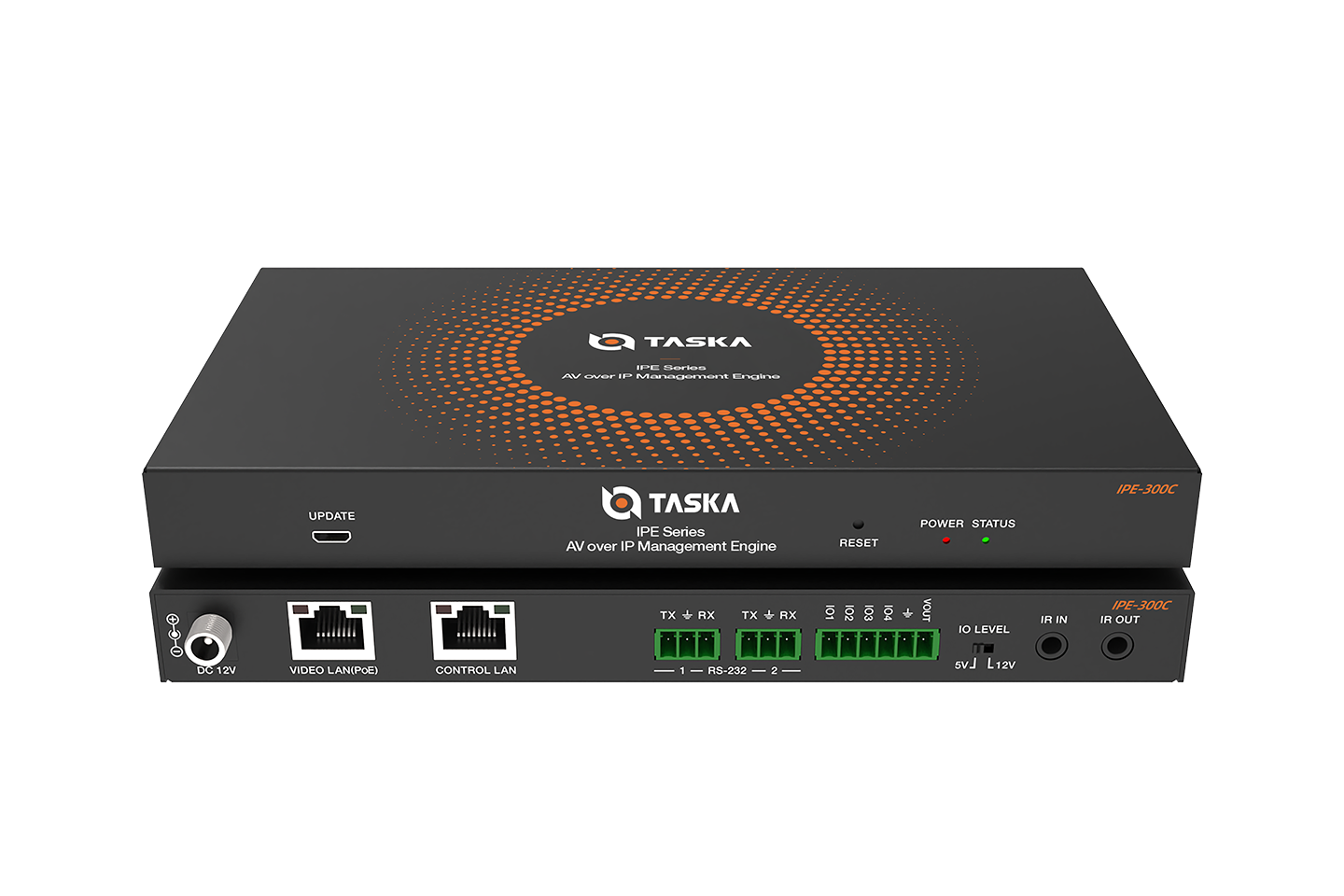

Flexible control via KVM, APP and Control Server (IPE-300C)
Standard POE supported (802.3af Class 3, PD mode)
Encoder supports HDMI local loop out
Encoder supports audio embedding and de-embedding function
