Taska IPE-100U 4K30/1080P60 All-in-One Transceiver supports true-color 4:2:2 encoding and decoding, featuring dual-network redundancy (auto-switching between optical fiber and Ethernet cable, with Ethernet priority) with one Gigabit Ethernet port and one SFP optical port. It delivers premium-quality AV signals with ultra-low latency over standard 1G network switches, supporting transmission distances of up to 100m via Ethernet.
Taska IPE-100U enables seamless switching, video wall processing, multi-view display, and KVM remote workstation management. Its flexible transceiver design (configurable as either an encoder or decoder within the same chassis) significantly simplifies on-site deployment and inventory control. In encoder mode, it provides one HDMI 1.4 input (with loop-through) and analog audio embedding/de-embedding. In decoder mode, it offers one HDMI 1.4 output with analog audio de-embedding. Additionally, the encoder includes a built-in H.264 video preview module for real-time monitoring.
PRODUCT FEATURES

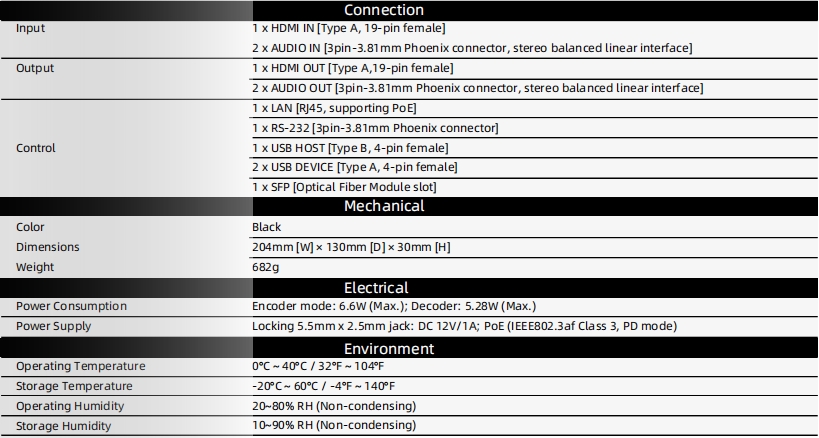

SPECIFICATION
DOWNLOADS
HDCP 2.2 compliant
Support video resolution up to 4K60Hz (4:4:4), 18Gbps video bandwidth, as specified in HDMI 2.0b
Audio formats support LPCM 2.0CH 48kHz
Integrated design of encoder and decoder, supporting fiber and copper
Support window roaming function: a unit as decoder can process up to 16 signals, enabling arbitrary windowing, roaming,
overlaying, and splicing
KVM seat management (one-to-one & one-to-many), supporting one person manages multiple PCs
Universal H.264/265 protocol, supporting IPC access and seamless integration with security camera products
Support high definition background image (both video and picture are available), as well as multi-screen splicing display
Support scrolling subtitles and character overlay
Support point-to-point signal extension
Support signal distribution, multicast mode, matrix and video wall functions over a 1G Network Switch
Support user rights management
Flexible control via KVM, APP and Control Server (IPE-300C)
Standard PoE supported (802.3af Class 3, PD mode)
Encoder supports HDMI local loop out
Encoder supports audio embedding and de-embedding function
